New Portable - Model 3200

Product Model:

3200

Product Description:

The model 3200 portable chromatographic system combines the gas chromatograph based on GC-FID technology, industrial computer and high-resolution chromatographic column to achieve the highest sensitivity and fastest analysis of gas samples.

Product Features:

◆ output 4-20mA output (4 channels) including software; the corresponding relationship between the configuration components and the output channel can be customized and the user can expand the quantity as required; ◆ built in standard gas cylinder300

Hotline:+86-510-87839377

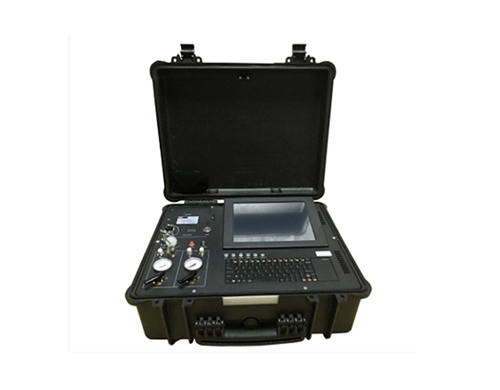

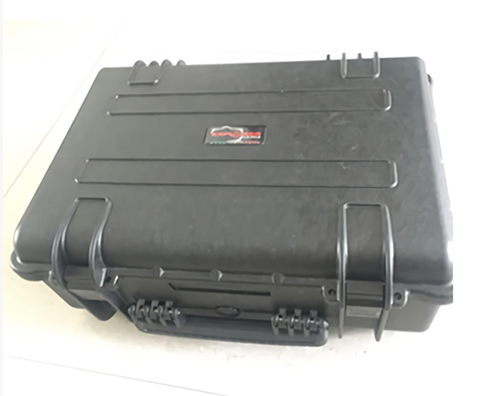

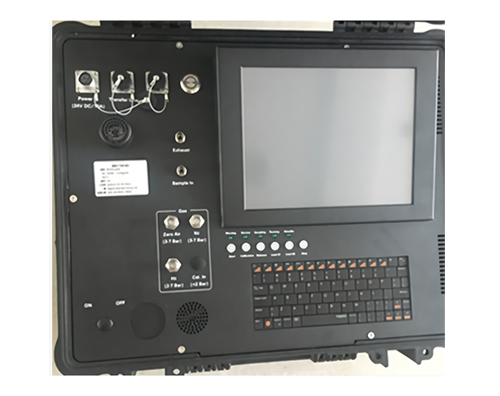

The model 3200 portable chromatographic system combines the gas chromatograph based on GC-FID technology, industrial computer and high-resolution chromatographic column to achieve the highest sensitivity and fastest analysis of gas samples. The precision of 3200 portable chromatograph is better than that of traditional laboratory gas chromatograph. For different applications, reliable chromatographic columns and detectors are selected for strict testing and selection to meet the analysis requirements of different customers. The whole instrument is only the size of computer case, so it is easy to carry. Users only need to bring a case to complete the field chromatograph test.
yle="font-size:16px;">◆ test items: THC CH4 NMHC benzene series





yle="font-size:16px;">◆ detection limit: 0.1 ppm



yle="font-size:16px;">◆ repeatability: < 2%





yle="font-size:16px;">◆ analysis cycle: < 1min




yle="font-size:16px;">◆ air source:




yle="font-size:16px;">Gas: high purity hydrogen (≥ 99.999%)




yle="font-size:16px;">Carrier gas: high purity nitrogen (≥ 99.999%)




yle="font-size:16px;">Auxiliary gas: zero level air (hydrocarbon < 20ppb)
◆ output 4-20mA output (4 channels) including software; the corresponding relationship between the configuration components and the output channel can be customized and the user can expand the quantity as required;

◆ built in standard gas cylinder300ml the maximum pressure can reach 1500psi; equipped with stainless steel pressure reducing valve preset pressure 1bar equipped with safety valve

◆ standard gas switching system instrument can automatically switch valve

◆ sample transmission line with heating sample transmission line: 1.5m 180 ℃ inner diameter 1mm; equipped with heating interface directly inserted with 3200;

◆ standard gas charging device directly from standard gas cylinder to p6000 built-in cylinder

◆ 2 Built in lithium electronic components (32V 15ah) to support the operation of the instrument for 4-5 hours; built in lithium battery safety protection device and voltage display automatic alarm in case of power shortage;
